GTW4-12 Automatic PLC Stirrup Bending Machine

Machine ModelGTW4-12
Single line4~12mm
Double line4~10mm
Rated Power21Kw
Efficiency600~1300pcs/h
GW/NW2400Kg/1900Kg
Dimension3050 * 1450 * 1950mm

Product Descriptions

  • Machine Video

  • Our Company Overview

  • PLC Controller

1 PLC controller
  • PLC controller with clear indication
  • Diagram

2 diagram
  • Draw your own diagram by easy click
  • Diagram Stocks

3 diagram stocks
  • Stock 100 diagrams no problem, acquire any one as you need by click
  • Wire Entrance

4 wire entrance
  • Wire entrance, 2 lines available same time
  • Wire Entrance Device

5 wire entrance device
  • Strong and wear-resistant
  • Function Handle

6 function handle
  • Function handle with clear indication
  • The Back of Function Handle

7 the back of function handle
  • The back  overview of function handle
  • Rollers

8 rollers
  • Traction roller and straightening rollers
  • Traction Rollers

9 traction rollers
  • Suggestions: please add grease every week, grease hole [the yellow frame indicator]
  • Bending Device

10 bending device
  • Suggestions: please add grease every week, grease hole [the red frame indicator]
  • Overview of Interior

11 overview of interior
  • The overview of interior
  • Electric Appliance

12 electric appliance
  • Famous brand of electric appliance

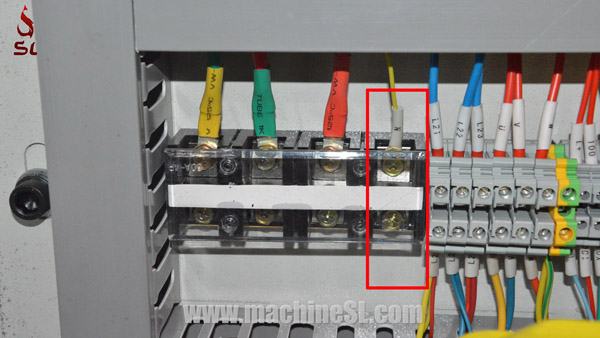

  • Power Line Port

13 power line point
  • Please note: it must connect power neutral line [the red frame indicator]
  • Driving Unit for Bending

14 driving unit for bending
  • Driving unit for bending
  • Air Compressor

15 air compressor
  • Air compressor
  • Driving Unit for Straightening

16 driving unit for straightening
  • Driving unit for straightening
  • Drain Valve

17 Drain valve
  • Drain valve [the red frame indicator]
  • Grease Injection Port

18 grease injection port
  • Injection Grease by Grease Gun
  • Foot

19 foot
  • Foot pad with fixing hole
  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,
  • Orders Delivery
