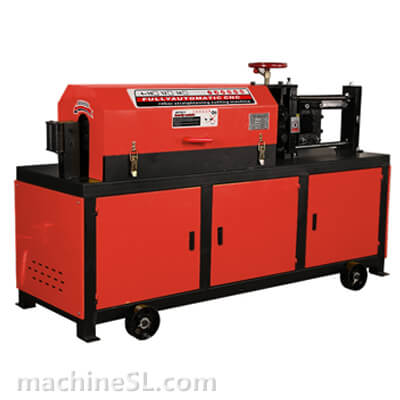

GT4-12D Rebar Straightening Cutting Machine [4mm-12mm]

Machine Model GT4-12D
Round bar 4~12mm
Rebar 5~10mm
Speed ≥45m/min
Power 9KW
GW/NW 680Kg/580Kg
Dimension 225*85*118cm

Product Descriptions

  • Machine Video

  • Our Company Overview

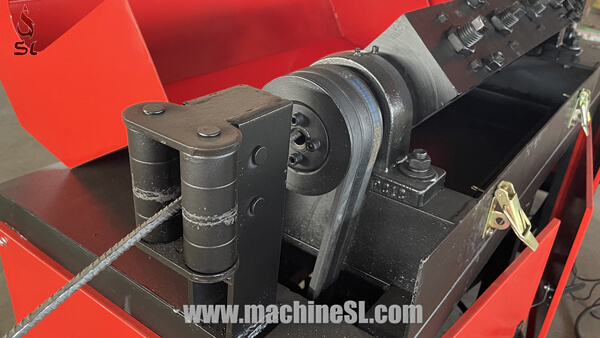

  • Input Hole

1 rebar input port
  • Two vertical rollers keep rebar passing smoothly, hard-wearing

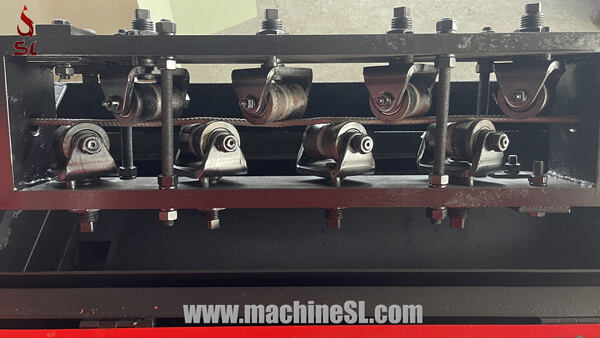

  • Straightening Die

2 straightening die
  • 8 straightening rollers stand in opposite, rotating in high speed, when the rebar passing, they will straight rebar in high straightness, and adjust the roller press rebar as the picture shows

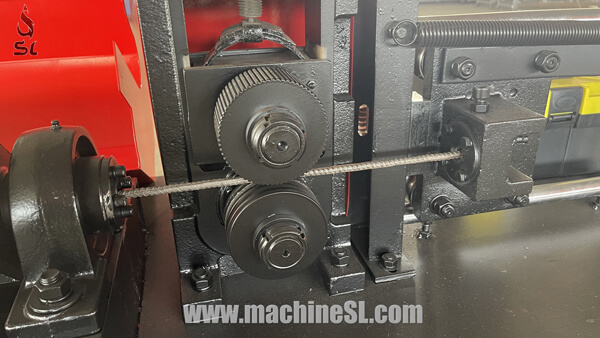

  • Meter Wheel

3 output port meter wheel
  • Measure length by the meter wheel, with high accuracy

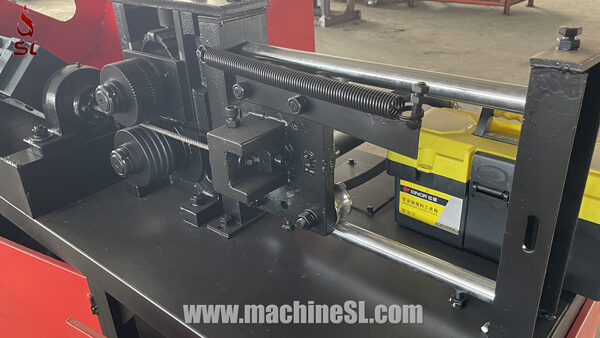

  • Sliding Cutter

4 Sliding cutter
  • Sliding cutter with hydraulic power

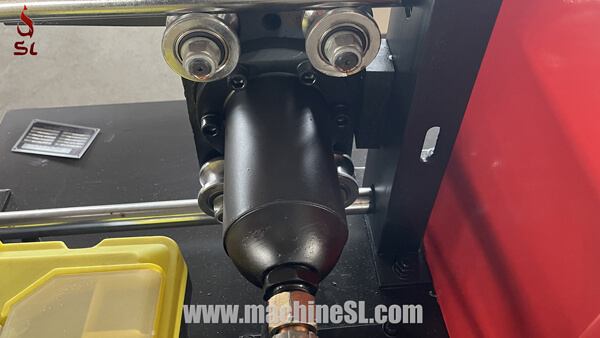

  • Hydrocylinder

5 hydrocylinder
  • Hydrocylinder supply powerful hydraulic to cutter

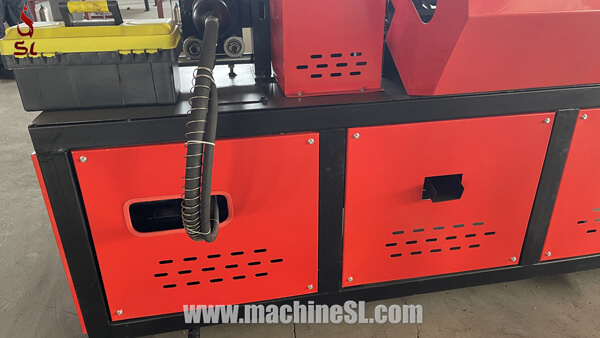

  • Hydraulic Tubing

6 hydraulic tubing
  • Hydraulic tubing connect hydraulic oil tank and hydrocylinder

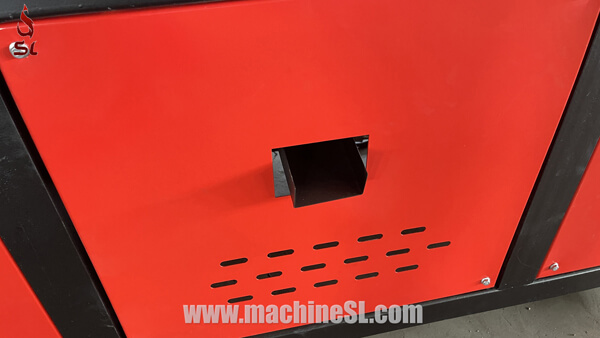

  • Iron Slag Output Port

7 iron slag output port
  • Iron slag outflow through this port

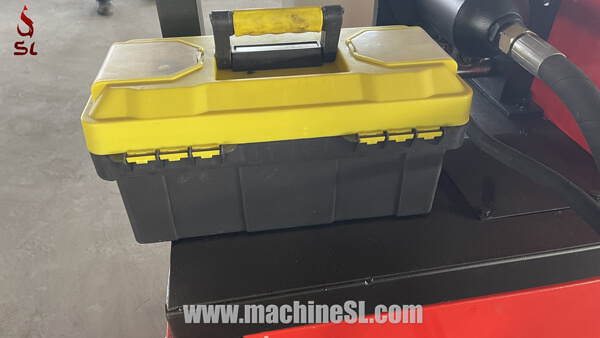

  • Toolkit

8 toolkit
  • Toolkit hold some frequently-used tools

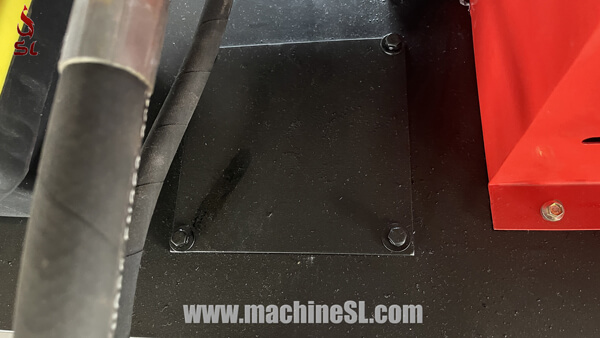

  • Hydraulic Oil Input Hole

9 hydraulic oil input hole
  • Before running the machine, it has to inject hydraulic oil as requirement

  • Motor

10 motor
  • 9Kw powerful motor supply power to the machine

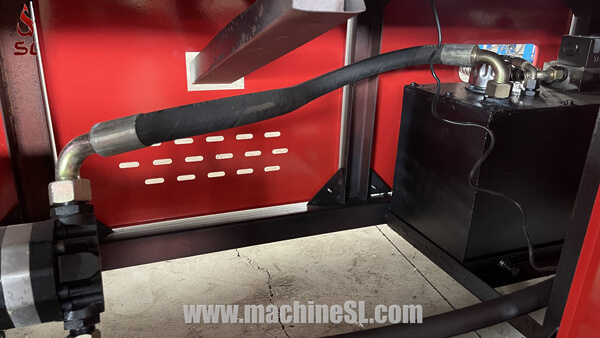

  • Motor Hydraulic Tubing

11 motor hydraulic tubing
  • The hydraulic tubing connect hydraulic oil with motor

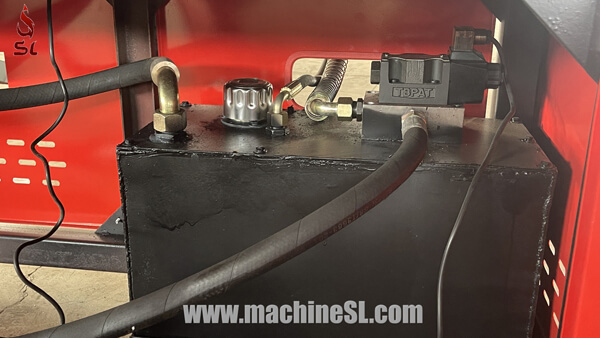

  • Hydraulic Oil Tank

12 hydraulic oil tank
  • Hydraulic oil tank storage at least 25kgs hydraulic oil

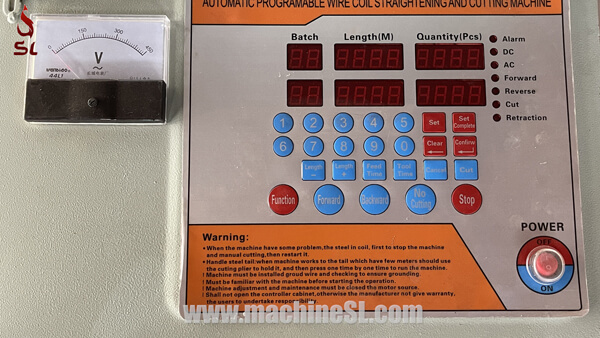

  • CNC Controller

13 CNC controller
  • Operate the machine by CNC controller, digital panel

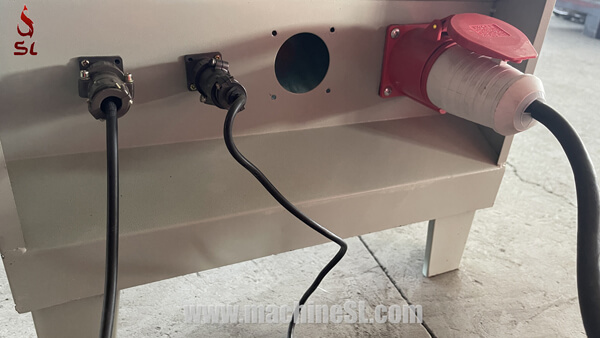

  • Power Lines Plugin

14 plugins
  • Power lines connection

  • The Package

package delivery
  • Angle iron frame with carton covers, avoiding solid wood problems
  • Strong for shipping,

  • Orders Delivery
